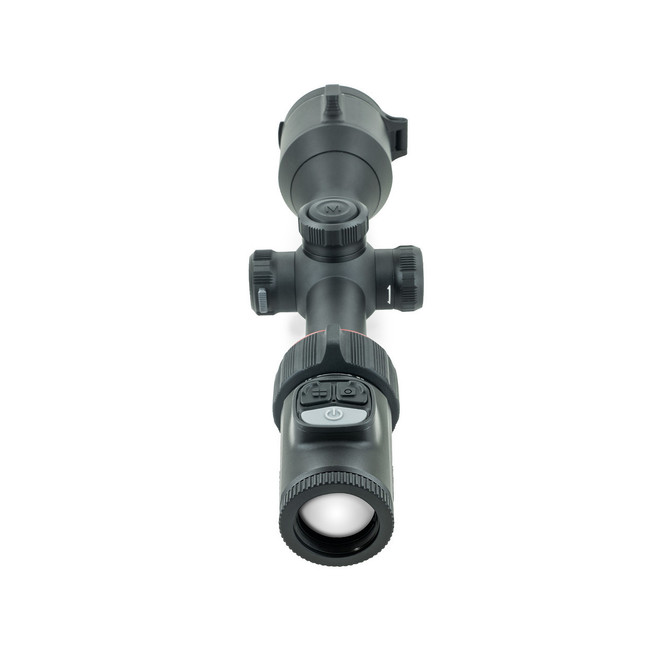

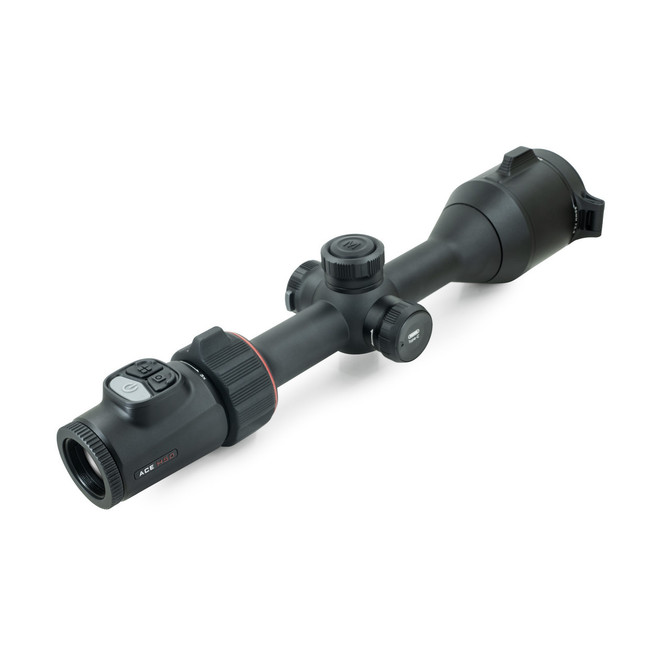

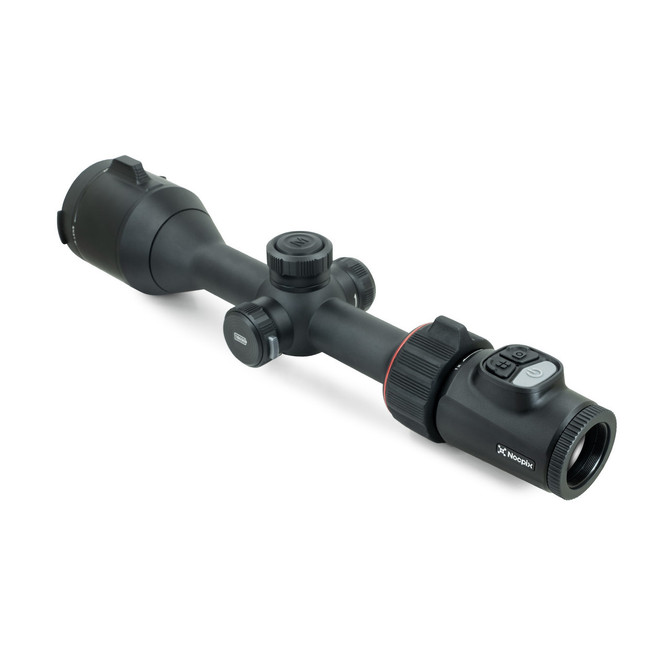

Nocpix ACE H50 Thermal Weapon Sight with Ocular Magnifier 3X 640x512 50 mm

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.

• A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
• High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
• Simplified controls offer improved ergonomics and a better user experience in the field.
• Uses common 18650 style rechargeable batteries.
• Charge through the unit with a unique lock-out USB-C port design.

• Optics

  Display Type

  AMOLED

  Eye Relief

  50mm

  Objective Focal Length

  50mm

  Digital Magnification

  8X

  Diopter Range

  -5 to +5

  Vertical Angular Field of View

  7°

  Horizontal Angular Field of View

  8.8°

  Focusing Mechanism

  Manual Focus

  Objective F#

  0.9

  Objective Diameter

  50mm

  Objective Lens Material

  Germanium

  Display Resolution

  2560×2560

  Detection Range

  2850 Yards

  Optical Magnification

  3X

• Features & Performance

  Warranty

  5 Years

  Startup Time

  <10 Seconds, Instant from Standby

  Color Palettes

  White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

  Picture-in-Picture

  Yes

  Storage Capacity

  64GB

  Connector Output

  Power/Data

  User-Updatable Firmware

  Yes

  Mobile App

  Yes

  Run Time

  7+

  Power Source

  USB-C External, 18650 Battery, Built-In Battery Pack

  One-Shot Zero

  Yes

  Stand-by Mode

  Yes

  Connector Type

  USB-C

  External Power Source

  USB-C

  Country of Manufacture

  China

  Wifi

  Yes

  Onboard Recording

  Yes

  Image Capture

  Yes

  Video Output

  Yes

• Environmental Specifications

  Operating Temperature Range

  -4°F~122°F

  Recoil Rating

  1000 g/s² (300 Win./7mm Mag)

  Ingress Protection

  IP67

• Physical

  Mounting Interface

  QD Picatinny

  Housing Material

  Aluminum Alloy

  Weight

  38.5 oz.

  Height

  2.68

  Width

  3.54

  Length

  14.37

•
